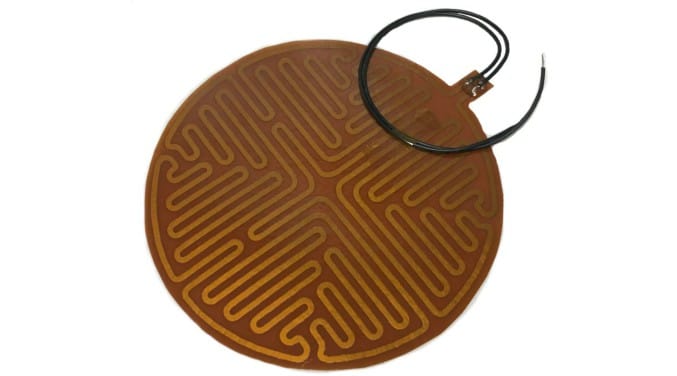

Standard Circle Heaters
- Pressure Sensitive Adhesive on the backside (Contact us if no PSA is desired).
- Polyimide: -328° – 302°F (-200° – 150°C).
- High Temp Polyester = -40°– 257°F (-40° – 125°C).
- More than 130 options in stock.
- Black potting over lead connection.
- Potting Height Maximum: 16-18 Gauge = .150″ | 20-22 Gauge = .115″ | 24 Gauge = .100″.
- Wires attached centered along edge of short side.
- White wires PTFE/Teflon insulated, stranded, 12″ minimum length.
- Ships in approx. 3 business days.
Use the sorting buttons or type in the Search area to find your desired heater.
| Type | Diameter (Inch) | Resistance (Ohms) | Watt Density | Nominal Voltage | Wattage | Min° (F/C) | Max° (F/C) | Amp / Current | Wire Gauge | Part Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Polyimide | 2 | 9.17 | 5 | 12 | 15.7 | (-328/-200) | (302/150) | 1.31 | 24 | 220359 | $28.05 | |
| Polyester | 2 | 9.17 | 5 | 12 | 15.7 | (-40/-40) | (257/125) | 1.31 | 24 | 220360 | $17.25 | |
| Polyimide | 2 | 4.59 | 10 | 12 | 31.4 | (-328/-200) | (302/150) | 2.62 | 24 | 220361 | $28.05 | |
| Polyester | 2 | 4.59 | 10 | 12 | 31.4 | (-40/-40) | (257/125) | 2.62 | 24 | 220362 | $17.25 | |
| Polyimide | 3 | 20.38 | 1 | 12 | 7.07 | (-328/-200) | (302/150) | 0.59 | 24 | 220363 | $30.60 | |
| Polyester | 3 | 20.38 | 1 | 12 | 7.07 | (-40/-40) | (257/125) | 0.59 | 24 | 220364 | $19.30 | |
| Polyimide | 3 | 4.08 | 5 | 12 | 35.33 | (-328/-200) | (302/150) | 2.94 | 24 | 220365 | $30.60 | |
| Polyester | 3 | 4.08 | 5 | 12 | 35.33 | (-40/-40) | (257/125) | 2.94 | 24 | 220366 | $19.30 | |
| Polyimide | 3 | 16.31 | 5 | 24 | 35.33 | (-328/-200) | (302/150) | 1.47 | 24 | 220367 | $30.60 | |
| Polyester | 3 | 16.31 | 5 | 24 | 35.33 | (-40/-40) | (257/125) | 1.47 | 24 | 220368 | $19.30 | |
| Polyimide | 3 | 2.04 | 10 | 12 | 70.65 | (-328/-200) | (302/150) | 5.89 | 22 | 220369 | $30.60 | |
| Polyester | 3 | 2.04 | 10 | 12 | 70.65 | (-40/-40) | (257/125) | 5.89 | 22 | 220370 | $19.30 | |
| Polyimide | 3 | 8.15 | 10 | 24 | 70.65 | (-328/-200) | (302/150) | 2.94 | 24 | 220371 | $30.60 | |
| Polyester | 3 | 8.15 | 10 | 24 | 70.65 | (-40/-40) | (257/125) | 2.94 | 24 | 220372 | $19.30 | |
| Polyimide | 4 | 11.46 | 1 | 12 | 12.56 | (-328/-200) | (302/150) | 1.05 | 24 | 220373 | $34.20 | |
| Polyester | 4 | 11.46 | 1 | 12 | 12.56 | (-40/-40) | (257/125) | 1.05 | 24 | 220374 | $22.15 | |
| Polyester | 4 | 45.86 | 1 | 24 | 12.56 | (-40/-40) | (257/125) | 0.52 | 24 | 220375 | $22.15 | |
| Polyimide | 4 | 2.29 | 5 | 12 | 62.8 | (-328/-200) | (302/150) | 5.23 | 22 | 220376 | $34.20 | |
| Polyimide | 4 | 9.17 | 5 | 24 | 62.8 | (-328/-200) | (302/150) | 2.62 | 24 | 220377 | $34.20 | |
| Polyester | 4 | 2.29 | 5 | 12 | 62.8 | (-40/-40) | (257/125) | 5.23 | 22 | 220378 | $22.15 | |
| Polyimide | 4 | 1.15 | 10 | 12 | 125.6 | (-328/-200) | (302/150) | 10.47 | 20 | 220379 | $34.20 | |
| Polyester | 4 | 1.15 | 10 | 12 | 125.6 | (-40/-40) | (257/125) | 10.47 | 20 | 220380 | $22.15 | |
| Polyimide | 4 | 4.59 | 10 | 24 | 125.6 | (-328/-200) | (302/150) | 5.23 | 22 | 220381 | $34.20 | |
| Polyester | 4 | 4.59 | 10 | 24 | 125.6 | (-40/-40) | (257/125) | 5.23 | 22 | 220382 | $22.15 | |
| Polyimide | 4 | 18.34 | 10 | 48 | 125.6 | (-328/-200) | (302/150) | 2.62 | 24 | 220383 | $34.20 | |
| Polyester | 4 | 18.34 | 10 | 48 | 125.6 | (-40/-40) | (257/125) | 2.62 | 24 | 220384 | $22.15 | |
| Polyimide | 5 | 7.34 | 1 | 12 | 19.63 | (-328/-200) | (302/150) | 1.64 | 24 | 220385 | $38.80 | |
| Polyester | 5 | 7.34 | 1 | 12 | 19.63 | (-40/-40) | (257/125) | 1.64 | 24 | 220386 | $25.85 | |
| Polyimide | 5 | 29.35 | 1 | 24 | 19.63 | (-328/-200) | (302/150) | 0.82 | 24 | 220387 | $38.80 | |
| Polyester | 5 | 29.35 | 1 | 24 | 19.63 | (-40/-40) | (257/125) | 0.82 | 24 | 220388 | $25.85 | |
| Polyimide | 5 | 23.48 | 5 | 48 | 98.13 | (-328/-200) | (302/150) | 2.04 | 24 | 220389 | $38.80 | |
| Polyester | 5 | 23.48 | 5 | 48 | 98.13 | (-40/-40) | (257/125) | 2.04 | 24 | 220390 | $25.85 | |
| Polyimide | 5 | 1.47 | 5 | 12 | 98.13 | (-328/-200) | (302/150) | 8.18 | 20 | 220391 | $38.80 | |
| Polyester | 5 | 1.47 | 5 | 12 | 98.13 | (-40/-40) | (257/125) | 8.18 | 20 | 220392 | $25.85 | |
| Polyimide | 5 | 11.74 | 10 | 48 | 196.25 | (-328/-200) | (302/150) | 4.09 | 24 | 220393 | $38.80 | |
| Polyester | 5 | 11.74 | 10 | 48 | 196.25 | (-40/-40) | (257/125) | 4.09 | 24 | 220394 | $25.85 | |
| Polyimide | 5 | 73.38 | 10 | 120 | 196.25 | (-328/-200) | (302/150) | 1.64 | 24 | 220395 | $38.80 | |
| Polyester | 5 | 73.38 | 10 | 120 | 196.25 | (-40/-40) | (257/125) | 1.64 | 24 | 220396 | $25.85 | |
| Polyimide | 6 | 20.38 | 1 | 24 | 28.26 | (-328/-200) | (302/150) | 1.18 | 24 | 220397 | $44.40 | |
| Polyimide | 6 | 20.38 | 1 | 24 | 28.26 | (-328/-200) | (302/150) | 1.18 | 24 | 220398 | $44.40 | |
| Polyimide | 6 | 81.53 | 1 | 48 | 28.26 | (-328/-200) | (302/150) | 0.59 | 24 | 220399 | $37.90 | |
| Polyester | 6 | 81.53 | 1 | 48 | 28.26 | (-40/-40) | (257/125) | 0.59 | 24 | 220400 | $30.30 | |
| Polyimide | 6 | 16.31 | 5 | 48 | 141.3 | (-328/-200) | (302/150) | 2.94 | 24 | 220401 | $44.40 | |
| Polyester | 6 | 16.31 | 5 | 48 | 141.3 | (-40/-40) | (257/125) | 2.94 | 24 | 220402 | $30.30 | |
| Polyimide | 6 | 1.02 | 5 | 12 | 141.3 | (-328/-200) | (302/150) | 11.78 | 16 | 220403 | $44.40 | |
| Polyester | 6 | 1.02 | 5 | 12 | 141.3 | (-40/-40) | (257/125) | 11.78 | 16 | 220404 | $30.30 | |
| Polyimide | 6 | 8.15 | 10 | 48 | 282.6 | (-328/-200) | (302/150) | 5.89 | 22 | 220405 | $37.90 | |
| Polyester | 6 | 8.15 | 10 | 48 | 282.6 | (-40/-40) | (257/125) | 5.89 | 22 | 220406 | $30.20 | |
| Polyimide | 6 | 50.96 | 10 | 120 | 282.6 | (-328/-200) | (302/150) | 2.36 | 24 | 220407 | $37.90 | |
| Polyester | 6 | 50.96 | 10 | 120 | 282.6 | (-40/-40) | (257/125) | 2.36 | 24 | 220408 | $30.30 | |
| Polyimide | 7 | 59.90 | 1 | 48 | 38.47 | (-328/-200) | (302/150) | 0.8 | 24 | 220409 | $51.05 | |
| Polyester | 7 | 59.90 | 1 | 48 | 38.47 | (-40/-40) | (257/125) | 0.8 | 24 | 220410 | $40.85 | |
| Polyimide | 7 | 3.74 | 1 | 12 | 38.47 | (-328/-200) | (302/150) | 3.21 | 24 | 220411 | $51.05 | |
| Polyester | 7 | 3.74 | 1 | 12 | 38.47 | (-40/-40) | (257/125) | 3.21 | 24 | 220412 | $40.85 | |
| Polyimide | 7 | 11.98 | 5 | 48 | 192.33 | (-328/-200) | (302/150) | 4.01 | 24 | 220413 | $51.05 | |
| Polyester | 7 | 11.98 | 5 | 48 | 192.33 | (-40/-40) | (257/125) | 4.01 | 24 | 220414 | $40.85 | |
| Polyimide | 7 | 74.87 | 5 | 120 | 192.33 | (-328/-200) | (302/150) | 1.6 | 24 | 220415 | $51.05 | |
| Polyester | 7 | 74.87 | 5 | 120 | 192.33 | (-40/-40) | (257/125) | 1.6 | 24 | 220416 | $40.85 | |
| Polyimide | 7 | 5.99 | 10 | 48 | 384.65 | (-328/-200) | (302/150) | 8.01 | 20 | 220417 | $51.05 | |
| Polyester | 7 | 5.99 | 10 | 48 | 384.65 | (-40/-40) | (257/125) | 8.01 | 20 | 220418 | $40.85 | |
| Polyimide | 7 | 37.44 | 10 | 120 | 384.65 | (-328/-200) | (302/150) | 3.21 | 24 | 220419 | $51.05 | |
| Polyester | 7 | 37.44 | 10 | 120 | 384.65 | (-40/-40) | (257/125) | 3.21 | 24 | 220420 | $40.85 | |
| Polyimide | 8 | 45.86 | 1 | 48 | 50.24 | (-328/-200) | (302/150) | 1.05 | 24 | 220421 | $58.70 | |
| Polyester | 8 | 45.86 | 1 | 48 | 50.24 | (-40/-40) | (257/125) | 1.05 | 24 | 220422 | $46.95 | |
| Polyimide | 8 | 2.87 | 1 | 12 | 50.24 | (-328/-200) | (302/150) | 4.19 | 24 | 421234 | $58.70 | |
| Polyester | 8 | 2.87 | 1 | 12 | 50.24 | (-40/-40) | (257/125) | 4.19 | 24 | 421235 | $46.95 | |
| Polyimide | 8 | 9.17 | 5 | 48 | 251.2 | (-328/-200) | (302/150) | 5.23 | 22 | 220423 | $58.70 | |
| Polyester | 8 | 9.17 | 5 | 48 | 251.2 | (-40/-40) | (257/125) | 5.23 | 22 | 220424 | $46.95 | |
| Polyimide | 8 | 57.32 | 5 | 120 | 251.2 | (-328/-200) | (302/150) | 2.09 | 24 | 220425 | $58.70 | |
| Polyester | 8 | 57.32 | 5 | 120 | 251.2 | (-40/-40) | (257/125) | 2.09 | 24 | 220426 | $46.95 | |
| Polyimide | 8 | 28.66 | 10 | 120 | 502.4 | (-328/-200) | (302/150) | 4.19 | 24 | 220427 | $58.70 | |
| Polyester | 8 | 28.66 | 10 | 120 | 502.4 | (-40/-40) | (257/125) | 4.19 | 24 | 220428 | $46.95 | |
| Polyimide | 8 | 4.59 | 10 | 48 | 502.4 | (-328/-200) | (302/150) | 10.47 | 20 | 220429 | $58.70 | |
| Polyester | 8 | 4.59 | 10 | 48 | 502.4 | (-40/-40) | (257/125) | 10.47 | 20 | 220430 | $46.95 | |
| Polyimide | 9 | 36.23 | 1 | 48 | 63.59 | (-328/-200) | (302/150) | 1.32 | 24 | 220431 | $67.35 | |
| Polyester | 9 | 36.23 | 1 | 48 | 63.59 | (-40/-40) | (257/125) | 1.32 | 24 | 220432 | $53.90 | |
| Polyimide | 9 | 2.26 | 1 | 12 | 63.59 | (-328/-200) | (302/150) | 5.3 | 22 | 431234 | $67.35 | |
| Polyester | 9 | 2.26 | 1 | 12 | 63.59 | (-40/-40) | (257/125) | 5.3 | 22 | 431235 | $53.90 | |
| Polyimide | 9 | 9.06 | 1 | 24 | 63.59 | (-328/-200) | (302/150) | 2.65 | 24 | 220433 | $67.35 | |
| Polyester | 9 | 9.06 | 1 | 24 | 63.59 | (-40/-40) | (257/125) | 2.65 | 24 | 220434 | $53.90 | |
| Polyimide | 9 | 7.25 | 5 | 48 | 317.93 | (-328/-200) | (302/150) | 6.62 | 22 | 220435 | $67.35 | |
| Polyester | 9 | 7.25 | 5 | 48 | 317.93 | (-40/-40) | (257/125) | 6.62 | 22 | 220436 | $53.90 | |
| Polyimide | 9 | 45.29 | 5 | 120 | 317.93 | (-328/-200) | (302/150) | 2.65 | 24 | 220437 | $67.35 | |
| Polyester | 9 | 45.29 | 5 | 120 | 317.93 | (-40/-40) | (257/125) | 2.65 | 24 | 220438 | $53.90 | |
| Polyimide | 9 | 22.65 | 10 | 120 | 635.85 | (-328/-200) | (302/150) | 5.3 | 22 | 220439 | $67.35 | |
| Polyester | 9 | 22.65 | 10 | 120 | 635.85 | (-40/-40) | (257/125) | 5.3 | 22 | 220440 | $53.90 | |
| Polyimide | 9 | 3.62 | 10 | 48 | 635.85 | (-328/-200) | (302/150) | 13.25 | 16 | 220441 | $67.35 | |
| Polyester | 9 | 3.62 | 10 | 48 | 635.85 | (-40/-40) | (257/125) | 13.25 | 16 | 220442 | $53.90 | |
| Polyimide | 10 | 1.83 | 1 | 12 | 78.5 | (-328/-200) | (302/150) | 6.54 | 22 | 441234 | $77.05 | |
| Polyester | 10 | 1.83 | 1 | 12 | 78.5 | (-40/-40) | (257/125) | 6.54 | 22 | 441235 | $61.65 | |
| Polyimide | 10 | 7.34 | 1 | 24 | 78.5 | (-328/-200) | (302/150) | 3.27 | 24 | 220443 | $77.05 | |
| Polyester | 10 | 7.34 | 1 | 24 | 78.5 | (-40/-40) | (257/125) | 3.27 | 24 | 220444 | $61.65 | |
| Polyimide | 10 | 5.87 | 5 | 48 | 392.5 | (-328/-200) | (302/150) | 8.18 | 20 | 220445 | $77.05 | |
| Polyester | 10 | 5.87 | 5 | 48 | 392.5 | (-40/-40) | (257/125) | 8.18 | 20 | 220446 | $61.65 | |
| Polyimide | 12 | 1.27 | 1 | 12 | 113.04 | (-328/-200) | (302/150) | 9.42 | 20 | 451234 | $106.00 | |
| Polyester | 12 | 1.27 | 1 | 12 | 113.04 | (-40/-40) | (257/125) | 9.42 | 20 | 451235 | $84.80 | |
| Polyimide | 12 | 5.10 | 1 | 24 | 113.04 | (-328/-200) | (302/150) | 4.71 | 22 | 220447 | $106.00 | |
| Polyester | 12 | 5.10 | 1 | 24 | 113.04 | (-40/-40) | (257/125) | 4.71 | 22 | 220448 | $84.80 | |
| Polyimide | 12 | 4.08 | 5 | 48 | 565.2 | (-328/-200) | (302/150) | 11.78 | 16 | 220449 | $106.00 | |
| Polyester | 12 | 4.08 | 5 | 48 | 565.2 | (-40/-40) | (257/125) | 11.78 | 16 | 220450 | $84.80 | |
| Polyimide | 12 | 12.74 | 10 | 120 | 1130.4 | (-328/-200) | (302/150) | 9.42 | 20 | 220451 | $106.00 | |
| Polyester | 12 | 12.74 | 10 | 120 | 1130.4 | (-40/-40) | (257/125) | 9.42 | 20 | 220452 | $84.80 | |
| Polyimide | 14 | 0.94 | 1 | 12 | 153.86 | (-328/-200) | (302/150) | 12.82 | 16 | 461234 | $132.55 | |
| Polyester | 14 | 0.94 | 1 | 12 | 153.86 | (-40/-40) | (257/125) | 12.82 | 16 | 461235 | $90.15 | |
| Polyimide | 14 | 14.97 | 1 | 48 | 153.86 | (-328/-200) | (302/150) | 3.21 | 24 | 220453 | $132.55 | |
| Polyester | 14 | 14.97 | 1 | 48 | 153.86 | (-40/-40) | (257/125) | 3.21 | 24 | 220454 | $90.15 | |
| Polyimide | 14 | 9.36 | 10 | 120 | 1538.6 | (-328/-200) | (302/150) | 12.82 | 16 | 220455 | $132.55 | |
| Polyester | 14 | 9.36 | 10 | 120 | 1538.6 | (-40/-40) | (257/125) | 12.82 | 16 | 220456 | $90.15 | |
| Polyimide | 15 | 13.04 | 1 | 48 | 176.63 | (-328/-200) | (302/150) | 3.68 | 24 | 220457 | $147.35 | |
| Polyester | 15 | 13.04 | 1 | 48 | 176.63 | (-40/-40) | (257/125) | 3.68 | 24 | 220458 | $100.20 | |
| Polyimide | 15 | 3.26 | 1 | 24 | 176.63 | (-328/-200) | (302/150) | 7.36 | 22 | 471234 | $147.35 | |
| Polyester | 15 | 3.26 | 1 | 24 | 176.63 | (-40/-40) | (257/125) | 7.36 | 22 | 471235 | $100.20 | |
| Polyimide | 15 | 16.31 | 5 | 120 | 883.13 | (-328/-200) | (302/150) | 7.36 | 22 | 220459 | $147.35 | |
| Polyester | 15 | 16.31 | 5 | 120 | 883.13 | (-40/-40) | (257/125) | 7.36 | 22 | 220460 | $100.20 | |
| Polyimide | 15 | 10.87 | 7.5 | 120 | 1324.69 | (-328/-200) | (302/150) | 11.04 | 18 | 220461 | $147.35 | |
| Polyester | 15 | 10.87 | 7.5 | 120 | 1324.69 | (-40/-40) | (257/125) | 11.04 | 18 | 220462 | $100.20 | |
| Polyimide | 16 | 11.46 | 1 | 48 | 200.96 | (-328/-200) | (302/150) | 4.19 | 24 | 220463 | $163.15 | |
| Polyester | 16 | 11.46 | 1 | 48 | 200.96 | (-40/-40) | (257/125) | 4.19 | 24 | 220464 | $110.95 | |
| Polyimide | 16 | 2.87 | 1 | 24 | 200.96 | (-328/-200) | (302/150) | 8.37 | 20 | 481234 | $163.15 | |
| Polyester | 16 | 2.87 | 1 | 24 | 200.96 | (-40/-40) | (257/125) | 8.37 | 20 | 481235 | $110.95 | |
| Polyimide | 16 | 14.33 | 5 | 120 | 1004.8 | (-328/-200) | (302/150) | 8.37 | 20 | 220465 | $163.15 | |
| Polyester | 16 | 14.33 | 5 | 120 | 1004.8 | (-40/-40) | (257/125) | 8.37 | 20 | 220466 | $110.95 | |
| Polyimide | 17 | 10.16 | 1 | 48 | 226.87 | (-328/-200) | (302/150) | 4.73 | 22 | 220467 | $180.00 | |
| Polyester | 17 | 10.16 | 1 | 48 | 226.87 | (-40/-40) | (257/125) | 4.73 | 22 | 220468 | $122.40 | |
| Polyimide | 17 | 63.47 | 1 | 120 | 226.87 | (-328/-200) | (302/150) | 1.89 | 24 | 220469 | $180.00 | |
| Polyester | 17 | 63.47 | 1 | 120 | 226.87 | (-40/-40) | (257/125) | 1.89 | 24 | 220470 | $122.40 | |
| Polyester | 20 | 7.34 | 1 | 48 | 314 | (-40/-40) | (257/125) | 6.54 | 22 | 220471 | $165.35 | |
| Polyester | 20 | 9.17 | 5 | 120 | 1570 | (-40/-40) | (257/125) | 13.08 | 16 | 220472 | $165.35 | |
| Polyester | 24 | 5.10 | 1 | 48 | 452.16 | (-40/-40) | (257/125) | 9.42 | 20 | 220473 | $226.40 | |
| Polyester | 24 | 31.85 | 1 | 120 | 452.16 | (-40/-40) | (257/125) | 3.77 | 24 | 220474 | $226.40 |
